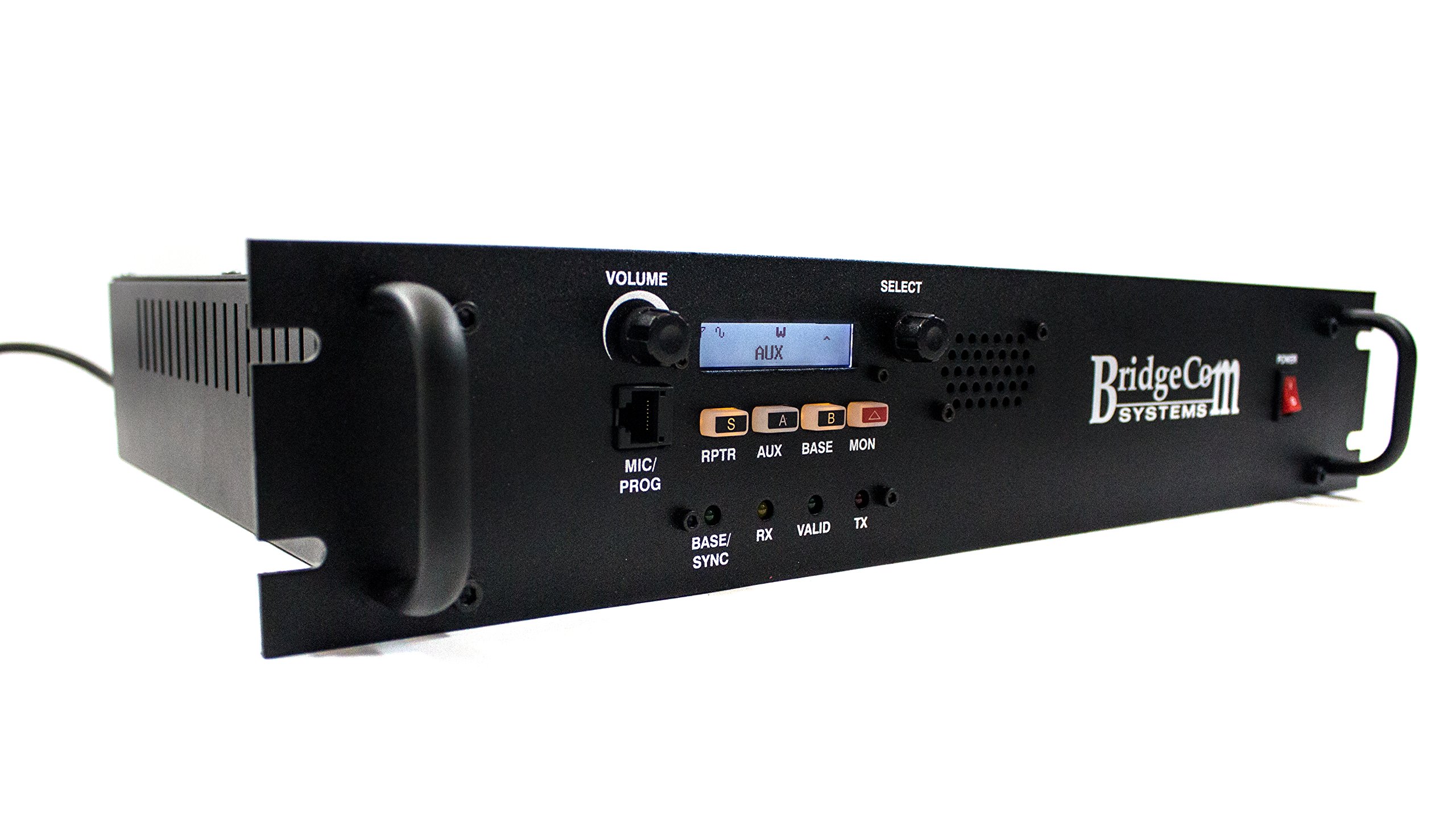

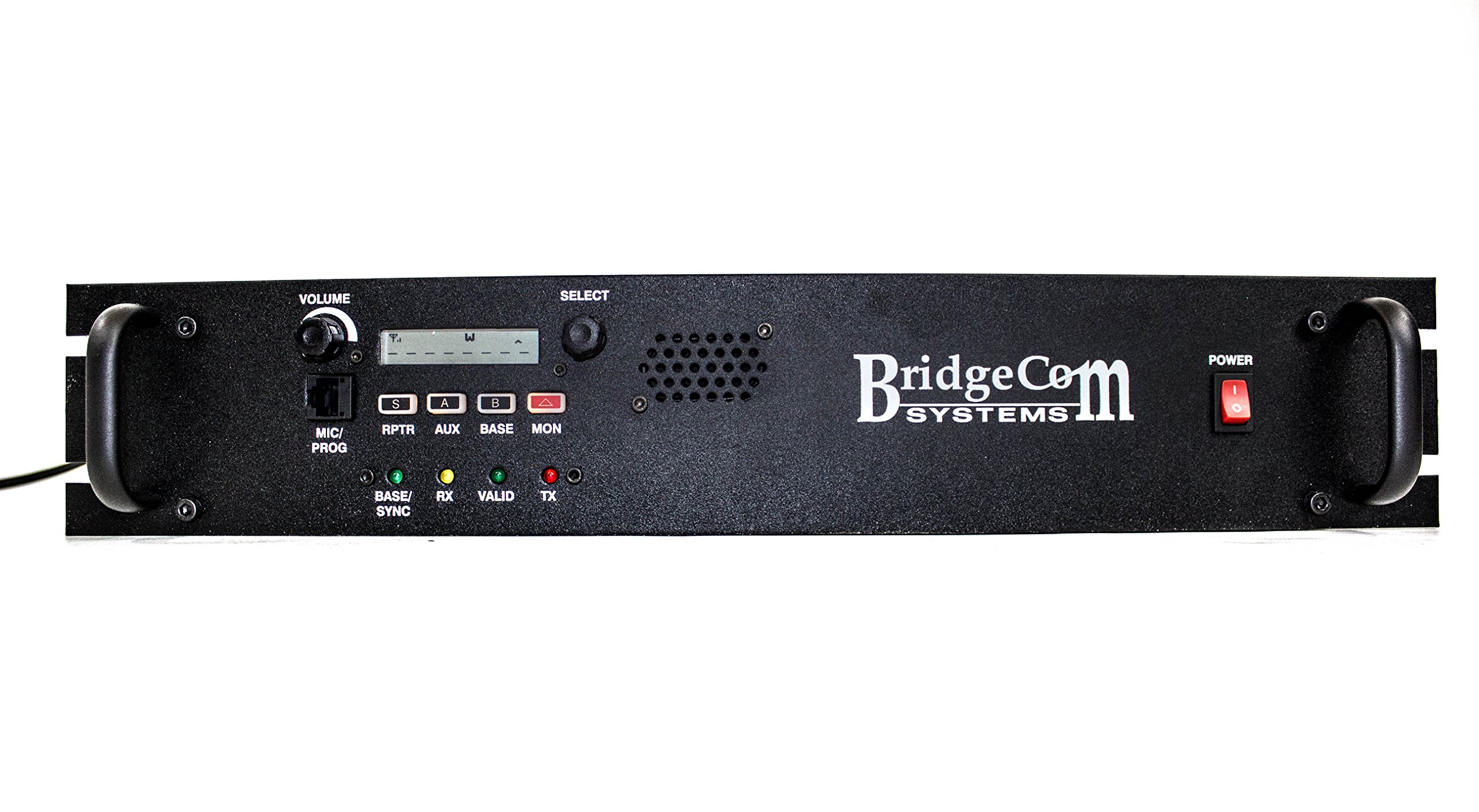

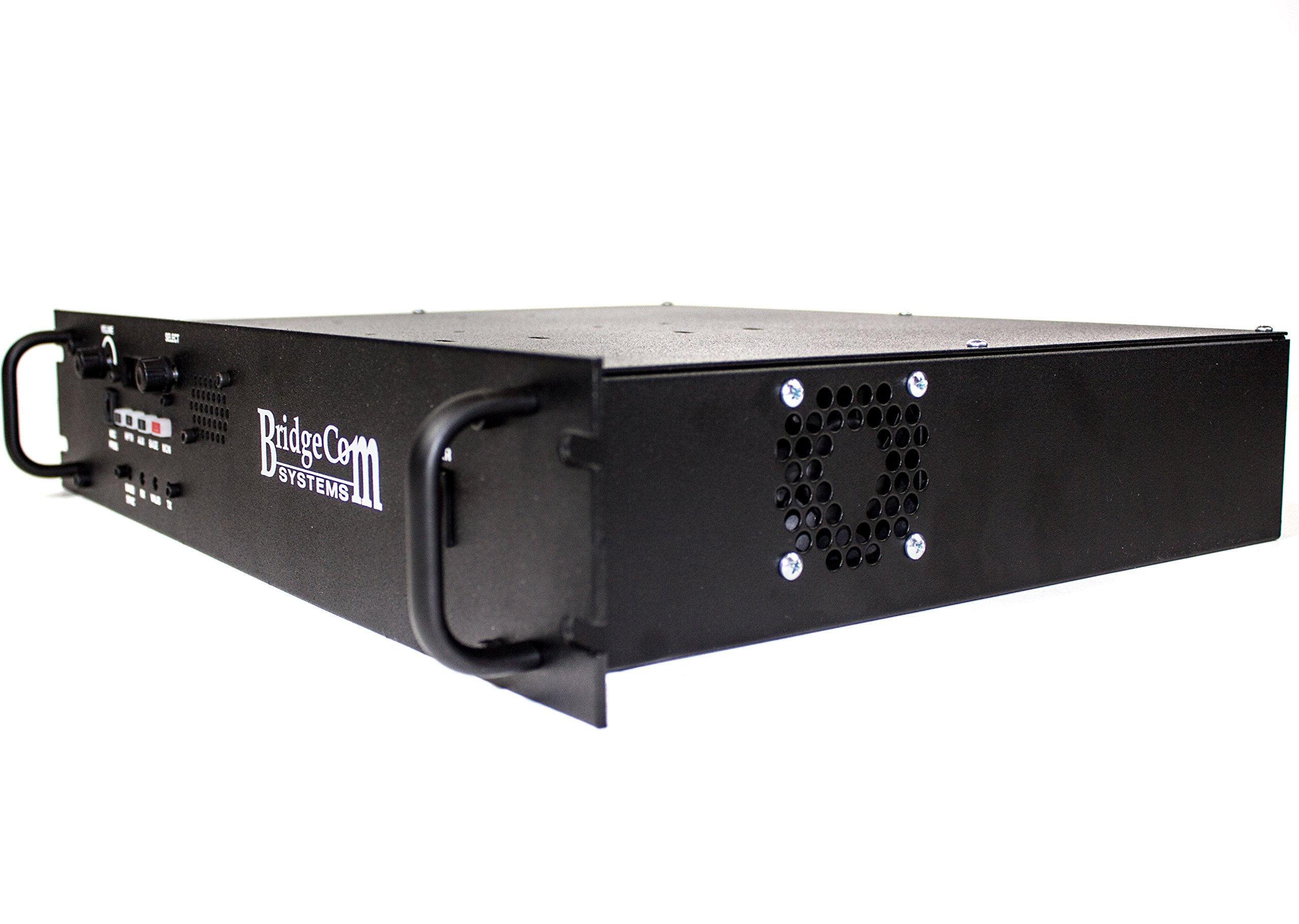

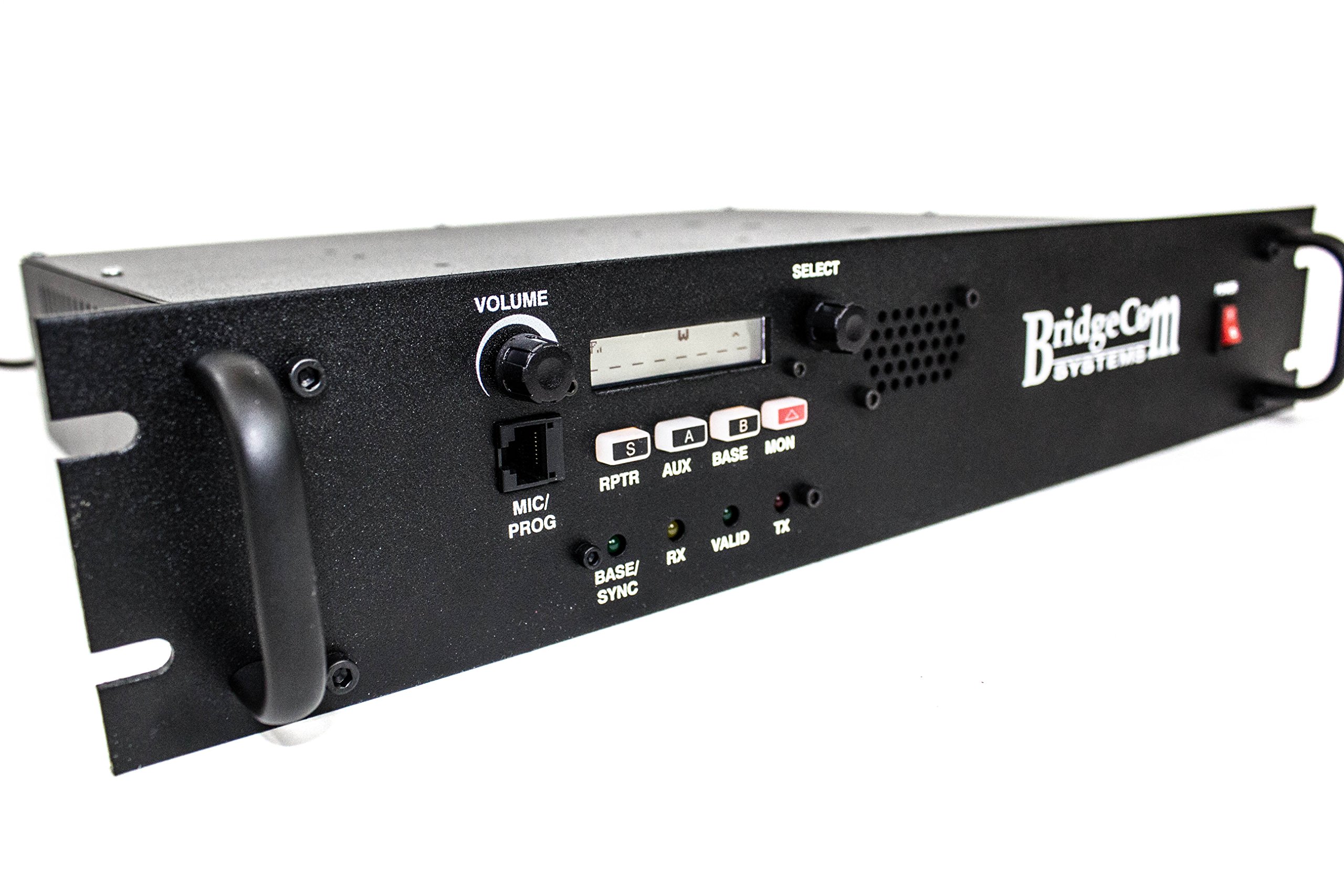

BCR-40U UHF FM Repeater Radio System 40W- Amateur Ham Radio Repeater and Commercial Repeater, Digital Radio Repeater Ready Through MMDVM by BridgeCom Systems

Description

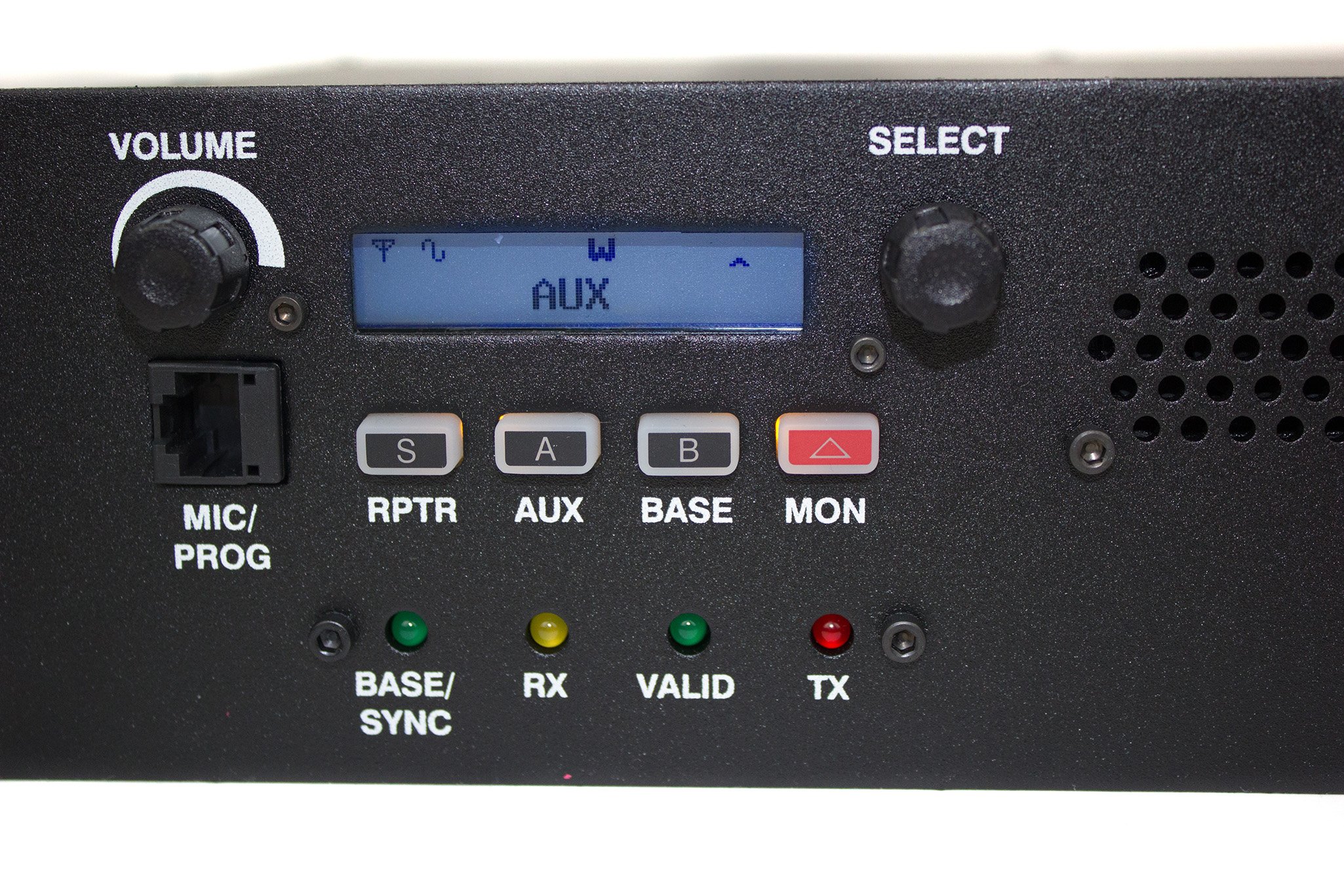

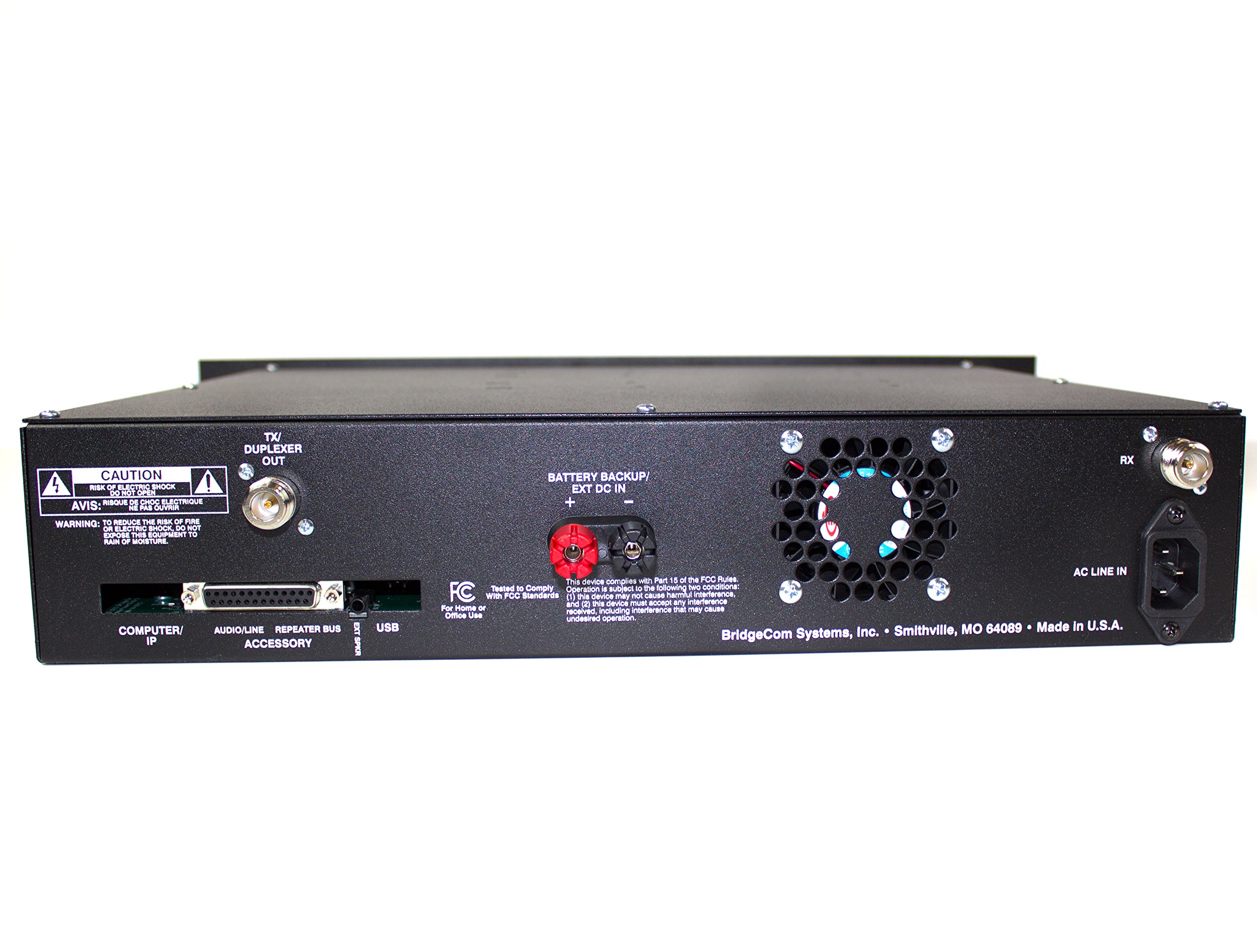

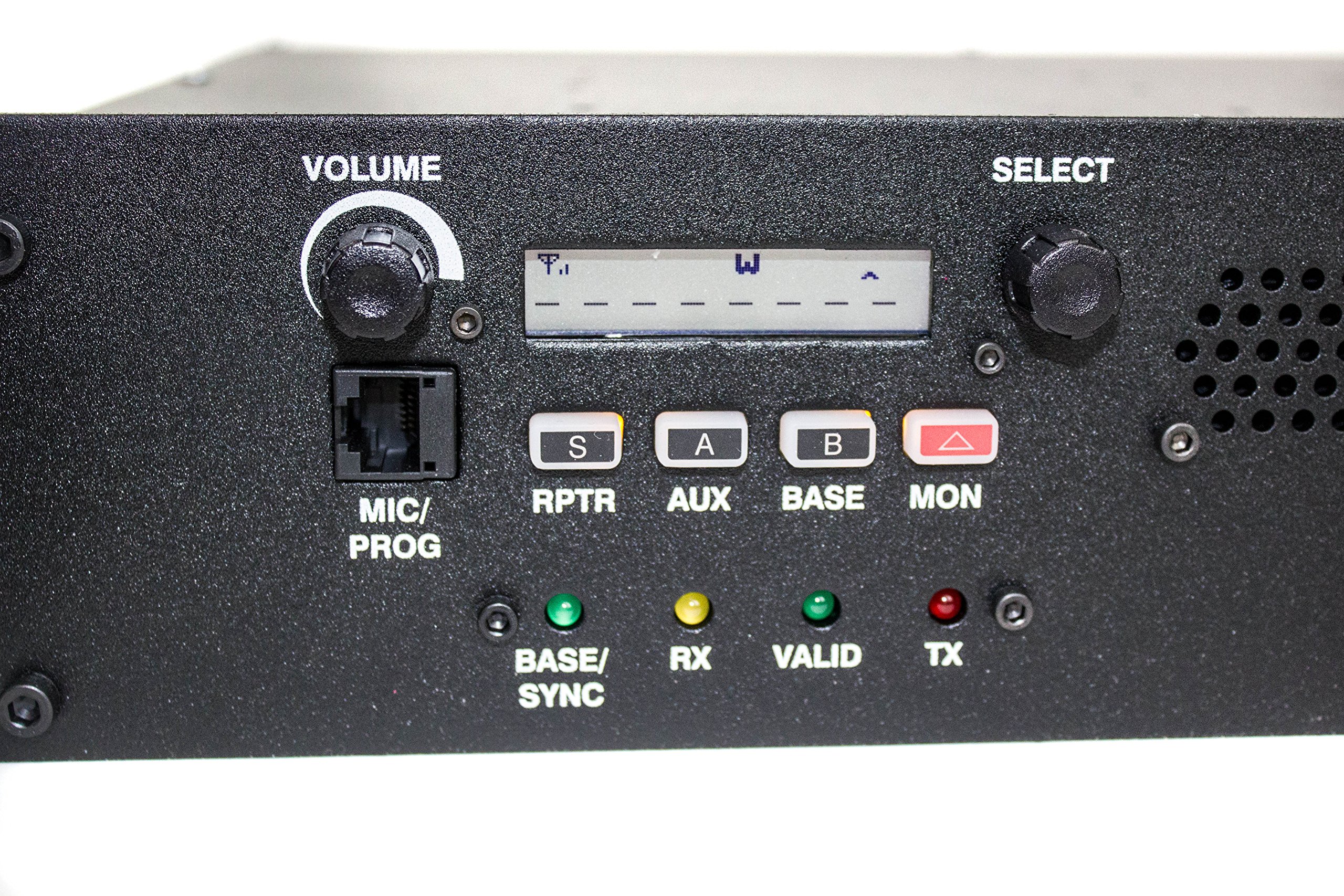

Features: UHF (400-470 MHz) - 40 Watts Continuous DutyAmateur Digital Ready for Dual Mode (Digital/Analog) Designed and assembled in the USA2 - year warrantyWindows Based Programmer (Sold Separately) Built-In 11.2A Power SupplyBattery Backup with Built-in Charging CircuitDual Cooling FansFront Panel Speaker25-pin Accessory ConnectorAdjustable Squelch12.5 kHz/25 kHz Channel SpacingOver-the-Air Programming and Maintenance via DTMF Tone SequencesBuilt-in station CWID - Morse rate programmable 10-25 wpm. MAX TX Power when transmitting 53 Watts is ~10 ampsQuiescent draw is around ~250mAFREE Initial Programming General:(BCR-40U)Number of Channels:16Operating Voltage: 13.8 V DC NominalChannel Spacing: 12.5kHz/25kHzCurrent Drain: 10A MaxWeight:18lbsWeight with Duplexer:20lbsFrequency Range: 400-470 MHz 450-510 MHz Dim. (W x H x D): 19.0” x 3.5” x 13.5” Frequency Stability: +/-1.5 ppm +/- 1.5 ppm Operating Temp Range: -22° F to +140° F (-30° C to +60° C) Receiver:(BCR-40U)Local Oscillator: Low-side injection Sensitivity: 0.25 µV @ 12dB SINAD / 0.22 µV @ 10dB Squelch Threshold: Open 12dB SINAD/ Close 8dB SINAD Selectivity: 65dB @ 12.5kHz 70dB @ 25.0kHz Spurious Rejection: 70dB 70dB Intermodulation Rejection: 72dB @ 12.5kHz 72dB @ 25.0kHz Antenna Connector: N-Type Antenna Impedance: 50Ω Transmitter:(BCR-40U)RF Output (w/o duplexer): Programmable: 400-470 @ 0-40W 450-510 @ 0-40W adjustable Modulation: 160K0F3E, 11K0F3E Maximum Deviation: +/- 5kHz (25 kHz) +/- 2.5 kHz (12.5 kHz) FM Hum and Noise: 40dB @ 12.5kHz 45dB @ 25.0kHz Antenna Connector: N-Type Antenna Impedance: 50Ω
